Samsung Fridge Not Circulating Cold Air? Fix Method 7: Test & Replace Evaporator Fan Motor

Introduction:
This is Method 7 in our series on Samsung refrigerator cooling problems. Suppose you’ve manually defrosted the evaporator coils and fan (Method 4) and confirmed that the defrost system components, such as the thermostat/sensor (Method 5) and heater (Method 6), are likely working. In that case, the issue is likely resolved. However, your refrigerator or freezerย stillย isn’t cooling properly, and you don’t hear or feel air circulating; a faultyย evaporator fan motorย could be the issue.

The evaporator fan motor is responsible for blowing air across the cold evaporator coils and distributing that chilled air throughout the compartment. If this motor fails or becomes seized (for reasons other than being frozen in ice), no cold air will circulate, leading to warm temperatures even if the evaporator coils themselves are cold.

Disclaimer:ย This is an advanced DIY repair. It involves disassembly, working near the evaporator, and potentially testing/replacing an electrical motor.ย ALWAYS UNPLUG YOUR REFRIGERATOR FROM THE POWER OUTLET before starting any disassembly, testing, or replacement.ย If you are not comfortable with these steps or electrical testing, please consult a qualified appliance repair technician. We are not liable for any damage or injury.

When to Suspect a Faulty Evaporator Fan Motor:

  • The evaporator coil gets cold (you may feel it after briefly running the fridge after defrosting), but the compartment (fridge or freezer) remains warm.
  • You do not hear the sound of a fan running inside the affected compartment when the door is open (some fans stop when the door is open, but you might listen to it stop or try to start if you depress the door switch).
  • After a thorough manual defrost (Method 4), ensuring the fan blades are entirely free of ice, the fan still does not spin when power is restored.
  • The airflow from the vents inside the compartment is very weak or nonexistent.

Understanding the Evaporator Fan Motor:

  • Function:ย To physically move air across the cold evaporator coils and circulate it within the designated compartment (freezer or fresh food section).
  • Location:ย Mounted directly next to or within the housing of the evaporator coil, behind the interior back panel of the freezer or refrigerator compartment.
  • Failure Modes:ย The motor can burn out, its bearings can seize, or it might suffer an electrical fault.

Tools & Materials You’ll Need:

  • Screwdrivers (Phillips is standard).
  • Multimeter (Essential for testing the motor or power supply to it).
  • Towels.
  • Flashlight.
  • Replacement Evaporator Fan Motor (and possibly fan blade if damaged):ย CRITICAL – Must be the exact part for your specific Samsung refrigerator model and the correct compartment (freezer fan motors can differ from fridge fan motors in dual evaporator systems).
  • Nut Driver or Small Socket Set (Possibly, for removing fan blade or motor mounts).
  • Work Gloves.

Step-by-Step Guide:

Step 1: SAFETY FIRST – UNPLUG THE REFRIGERATOR!

  • Disconnect your refrigerator from the electrical outlet.

Step 2: Access the Evaporator Fan Motor

  • This procedure is identical to accessing the evaporator for manual defrosting, as detailed inย Method 4.
  • Empty the affected compartment (freezer or fridge).
  • Remove the interior back panel (evaporator cover) to expose the evaporator coil and the fan motor assembly fully.

Step 3: Ensure the Fan is Completely Free of Ice and Obstructions

  • Before assuming the motor is bad,ย triple-checkย that the fan blades are entirely free to spin and not obstructed by any residual ice, frost, or debris. Manually defrost again if needed (Method 4).

Step 4: Test the Fan Motor (Requires Power Briefly – EXTREME CAUTION)

  • Visual/Auditory Test (with Door Switch Depressed):
    1. Temporarily reconnect any wiring harnesses to the evaporator cover panel if you had disconnected them for panel removal, butย leave the panel off for now so you can see the fan.
    2. Carefully plug the refrigerator back in for aย very short period.
    3. Locate the door switch for the compartment you are working in.ย Depress and hold this door switchย (this tricks the fridge into thinking the door is closed, which should allow the fan to run).
    4. Observe the fan. Does it spin? Is it smooth and quiet, or noisy/struggling?
    5. After a few seconds of observation, UNPLUG THE REFRIGERATOR AGAIN.ย Please do not leave it running with the evaporator exposed for an extended period.
  • If the fan runs during this test,ย the motor is likely okay. The issue might be intermittent, related to the door switch itself, or a control board issue that fails to send power consistently.
  • If the fan does NOT run:ย Proceed to electrical testing or assume the motor is faulty (if you’re not comfortable with electrical testing).

Step 5: Electrical Test of the Fan Motor with a Multimeter (Advanced)

  • Ensure the Refrigerator is UNPLUGGED.

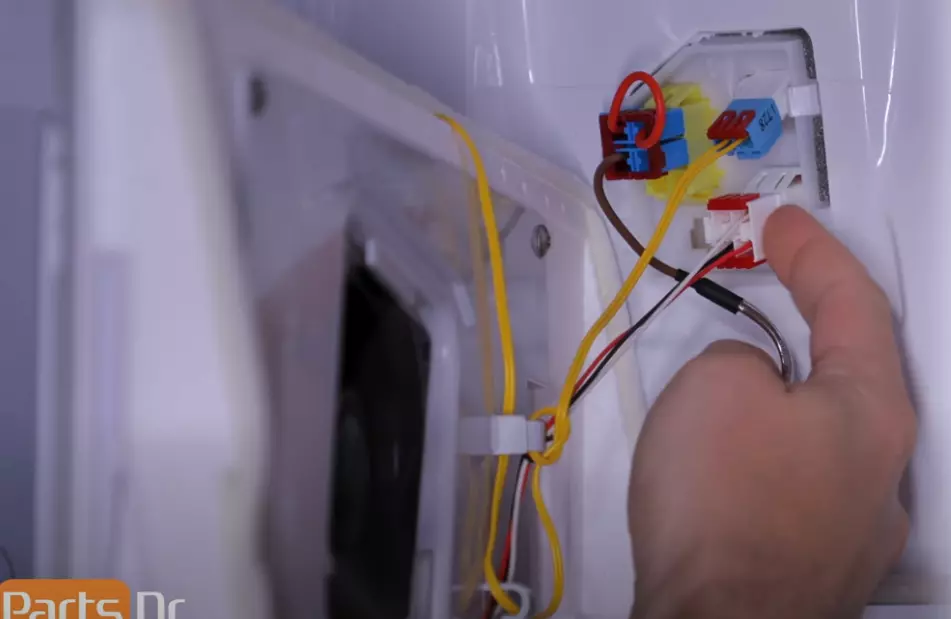

  • Disconnect Fan Motor Wires:ย Carefully disconnect the wiring harness leading directly to the evaporator fan motor.
  • Test for Continuity/Resistance (if a DC motor, testing is more complex):
    • AC Fan Motors (standard in older models):ย Set your multimeter to the resistance (Ohms ฮฉ) setting. Test across the motor’s power input terminals. You should obtain a measurable resistance reading (the value varies by motor). An “OL” (Open Line) reading means the motor winding is broken.
    • DC Fan Motors (standard in newer Samsung models):ย These are more challenging to test directly for continuity, as they often contain internal electronics. You would typically test for voltageย toย the motor when itย shouldย be running.
  • Test for Voltage TO the Motor (when it should be running):
    1. Reconnect the fan motor’s wiring harness.
    2. Carefully set up your multimeter to measure AC or DC Voltage, as appropriate for your fan motor (check the motor label or service information if unsure).
    3. CAREFULLYย plug the refrigerator in. Depress the door switch.
    4. Probe the proper
    wires on the fan motor’s connector to verify that power is
    1. present.
    • If the correct voltage is present but the fan doesn’t run,ย the fan motor is almost certainly bad.
    • If no voltage is present,ย the problem is likely with the wiring, the door switch, or the main control board, which is not sending power.
    • UNPLUG THE REFRIGERATOR immediately after this test.

Step 6: Replacing a Faulty Evaporator Fan Motor

  1. Obtain the Correct Part:ย Ensure you have the exact replacement fan motor (and blade if needed) for your model and compartment.
  2. Remove Fan Blade (If Necessary):ย The fan blade is often a press-fit onto the motor shaft or held in placeย by a small clip or nut. Carefully pull or unfasten it. Note its orientation.
  3. Unmount Old Motor:ย The motor is usually held in a bracket or housing by screws or clips. Remove these and take out the old motor.
  4. Install New Motor:ย Mount the new motor in the same orientation and secure it.
  5. Install Fan Blade:ย Press or secure the fan blade back onto the new motor’s shaft. Ensure it spins freely by hand and doesn’t hit the housing.
  6. Reconnect Wiring:ย Securely plug in the wiring harness to the new motor.

Step 7: Reassemble and Test

  • Reconnect any wiring harnesses to the evaporator cover panel.
  • Carefully reinstall the interior back panel.
  • Reinstall shelves, drawers, and food.
  • Plug the refrigerator back in.
  • Listen for the fan. You should hear it running (you may need to depress the door switch to verify).
  • Allow several hours for temperatures to stabilize. Proper airflow should now restore cooling.

Conclusion:
A non-functional evaporator fan motor will prevent cold air from circulating, rendering your Samsung refrigerator ineffective, even if the cooling system itself is producing cold at the evaporator. After ensuring the fan isn’t simply frozen, testing (and replacing if necessary) the motor is key to restoring proper airflow and cooling.
