Introduction:
Welcome to Method 4 of our dedicated series on fixing ice maker freezing problems in Samsung French-door refrigerators. Suppose less invasive methods like forced defrosting (Method 2) or manual cleaning (Method 3) haven’t solved your recurring ice buildup, and you suspect an inefficient defrost cycle is the culprit. Installing a Y-Clip (or a similar thermal clip) might be your specific official remedy.
Samsung has identified that on specific models, the defrost sensor (thermistor) for the refrigerator’s primary evaporator coil may not make optimal contact, leading to inaccurate temperature readings. This can result in incomplete defrost cycles, allowing frost to build up over time, which can then migrate or affect the airflow to the ice maker compartment, causing it to freeze. A Y-Clip is designed to improve this sensor contact.
Disclaimer: This guide is for informational purposes. Installing a Y-Clip involves accessing internal components of your refrigerator. Always unplug your refrigerator from the power outlet before attempting any disassembly or repair. If you are uncomfortable with these steps or your refrigerator’s design differs significantly, please consult a qualified appliance repair technician. Follow any specific instructions that may come with a Y-Clip if obtained as part of a service kit. We are not liable for any damage or injury.
When to Consider Installing a Y-Clip:
- You’ve observed significant frost buildup on the primary evaporator coil (behind the back panel inside the fresh food compartment), and your ice maker is freezing.
- You’ve read reports or received information (perhaps from Samsung support or forums) that a Y-Clip is a recommended fix for defrost-related ice maker issues on your specific refrigerator model.
- Other methods, particularly sealing the ice maker compartment (Method 1), haven’t fully resolved the freezing problem, suggesting the issue might originate from the central defrost system impacting the ice maker environment.
What is a Y-Clip and How Does It Help?
A Y-Clip is a small, typically metallic, spring-like clip. Its primary function is to:
- Improve Thermal Contact: It securely fastens the refrigerator’s defrost sensor (thermistor) directly and firmly against the evaporator coil tubing.
- Ensure Accurate Temperature Sensing: By maintaining good contact, the sensor can more accurately read the temperature of the evaporator coil.
- Promote Efficient Defrost Cycles: When the sensor accurately reads the temperature, it signals the control board to operate the defrost heater appropriately, ensuring that all frost is melted from the evaporator coil. If frost isn’t fully cleared, it accumulates, restricts airflow, and can indirectly cause the ice maker area to become excessively cold, allowing frost to migrate and potentially lead to freezing.
Obtaining a Y-Clip:
- Samsung Authorized Parts Distributor: This is the most reliable source for genuine Samsung parts. You may need to provide the model number of your refrigerator.
- Get it from Amazon: Y-Clip for Samsung fridge.
- Contacting Samsung Support: They might be able to provide the part number or direct you to a source.
- Note: Sometimes Y-Clips are included as part of a larger service kit for defrost issues.

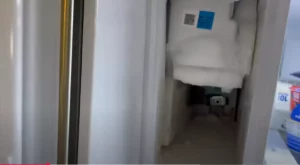

The problem we encounter usually indicates that the ice is severe; therefore, this video also includes the manual de-icing process before installing the Y-Clip. If you want to know how to install it, you can watch the video at the end of the article.
Step-by-Step Guide to Installing a Y-Clip:
Step 1: SAFETY FIRST – UNPLUG THE REFRIGERATOR!
- Disconnect your refrigerator from the electrical outlet.
Step 2: Empty and Access the Evaporator Cover
- Open the fresh food compartment doors.
- Remove all shelves, drawers, and food items obstructing access to the refrigerator section’s back interior panel (evaporator cover). This panel is usually located behind the crisper drawers and lower shelves.
Step 3: Remove the Evaporator Cover
- Several Phillips-head screws typically hold the evaporator cover in place. Locate and remove all of them.
- There might also be plastic clips or tabs. Gently pry or release these.
- Carefully pull the evaporator cover away from the back wall. It might be snug due to foam insulation. The cover may have wiring connected to fans or sensors, so be gentle and disconnect any wiring harnesses if necessary before entirely removing it.
Step 4: Locate the Defrost Sensor (Thermistor)
- You will see the coil (a series of finned tubes) with the evaporator cover removed.
- The defrost sensor is a small, often cylindrical or rectangular component with wires leading to it. It’s usually clipped or attached to one of the evaporator coil’s tubes. Although its location can vary, it’s typically on the coil’s inlet or outlet tube.
Step 5: Install the Y-Clip
- If a clip is present but looks loose or ineffective, carefully remove it.
- Position the Y-Clip to press the defrost sensor’s body firmly and directly against the evaporator coil’s metal tubing.
- Snap or slide the Y-Clip into place, creating a tight, secure connection between the sensor and the coil. The “Y” shape often straddles the tube, with the sensor in the V.
- Refer to any diagrams or specific instructions if your Y-Clip came with them.
Step 6: Reassemble
- Carefully reattach any wiring harnesses to the evaporator cover if you disconnected them.
- Align the evaporator cover and reinstall it, securing all screws and ensuring any clips re-engage.
- Reinstall all shelves, drawers, and food items.
Step 7: Power Up and Monitor
- Plug the refrigerator back into the power outlet.
- It will take several hours for the refrigerator to stabilize its temperatures.
- Monitor your ice maker’s performance over the next several days and weeks. If an inefficient defrost cycle (due to poor sensor contact) was contributing to your ice maker freezing, the Y-Clip should help provide a long-term solution.
Important Considerations:
- Correct Identification: Ensure this Y-Clip solution genuinely applies to your model and the symptoms you’re experiencing. It primarily addresses problems stemming from the main refrigerator defrost system.
- Care with Evaporator Fins: The evaporator fins are delicate and can be easily bent. Be careful when working around them.
- Combine with Other Fixes: The Y-Clip fix is often most effective when combined with ensuring the ice maker compartment is well-sealed (Method 1).
Conclusion:
Installing a Y-Clip can be crucial in resolving persistent ice maker freezing issues if the root cause is inefficient defrosting of the primary evaporator coil. It’s an official Samsung-recognized fix for specific models, designed to improve the accuracy of the defrost system.
In our next installment, Method 5, we’ll look at another potential source of ice buildup: Addressing Defrost Drain Freezing with Heater Solutions.
