Introduction:
Method 3 in our series addresses issues with Samsung Side-by-Side refrigerator ice systems. If your ice maker produces ice (you can see ice in the bucket), but no ice, or very little, comes out when you press the dispenser lever, the problem often lies within the ice dispenser chute. This chute can become blocked with ice fragments, frost, or even melted and refrozen ice clumps.
Unlike issues where the ice maker is frozen and not producing (covered in Methods 1 & 2), this method ensures a clear path from the ice bucket to your glass.
The “ice dispenser chute” refers to the entire pathway that ice takes after being pushed out of the ice bucket in the freezer by the auger, passing through the internal dispensing mechanism within the refrigerator door, and finally reaching the external dispenser opening.
Disclaimer: This guide is for informational purposes. While generally safe, clearing the chute may involve reaching into dispenser areas. As a precaution, consider unplugging your refrigerator from the power outlet, especially if using tools or moisture. If the blockage is severe or you are uncomfortable, consult a qualified appliance repair technician. We are not liable for any damage or injury.
When to Suspect a Clogged Ice Dispenser Chute:
- You can confirm the ice maker is making ice and the ice bucket has ice in it.
- When you activate the dispenser, you hear the auger motor running (a grinding/whirring sound from the freezer), but little or no ice comes out.
- Ice dispenses very slowly, or only crushed ice comes out, even when cubed is selected (or vice-versa if the selection mechanism is part of the chute blockage).
- You can see visible ice or frost buildup inside the dispenser opening on the door.
Why Does the Ice Dispenser Chute Get Clogged?
- Ice Fragments & Frost: Small chips of ice and frost can accumulate in the chute over time, especially if ice isn’t dispensed frequently.
- Melted & Refrozen Ice: If the dispenser flap doesn’t seal perfectly, or if warm, moist room air enters the chute, ice at the opening can melt slightly and then refreeze into a solid block. This is a prevalent cause.
- Overfilled Ice Bucket: If the ice bucket is too full, ice can jam the auger mechanism or the chute’s entry point.
- Dispenser Flap Issues: The small flap door at the bottom of the chute (inside the dispenser recess) is meant to seal out room air. If it’s stuck open, damaged, or its seal is compromised, it allows warm air in.
Tools & Materials You’ll Need:
- Flashlight.
- Wooden or Plastic Utensil (Long & Thin): A wooden spoon handle, a plastic ruler, or a non-metallic spatula. NEVER use sharp metal objects.
- Hair Dryer (LOW or COOL heat setting ONLY): For melting stubborn ice blockages.
- Towels or Soft Cloths.
- Warm (not hot) Water in a Spray Bottle (Optional – use with extreme caution and power off).
- Shop Vacuum with Crevice Tool (Optional): For removing loose ice fragments.
Step-by-Step Guide to Clearing and Maintaining the Ice Dispenser Chute:
Step 1: Safety Precaution – Consider Unplugging
- While not always strictly necessary for clearing the chute opening, it’s wise to unplug the refrigerator from the electrical outlet if you plan to use any tools to reach up into the chute or use a hairdryer near the dispenser electronics.
Step 2: Empty the Ice Bucket (Optional but Recommended)

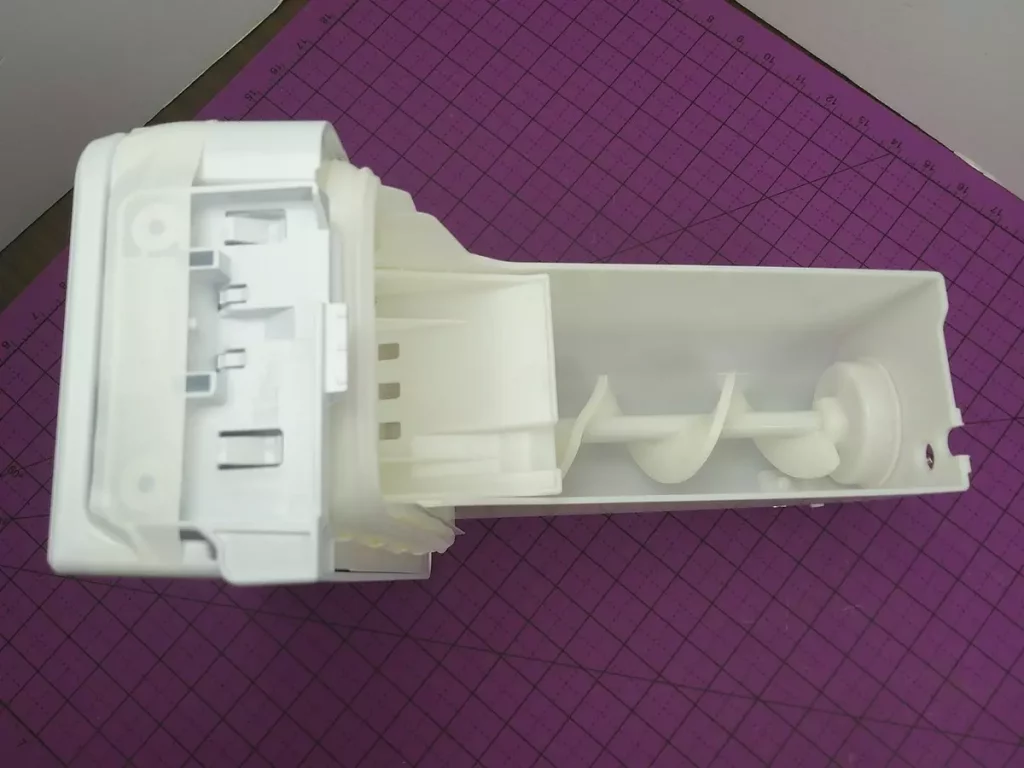

- Removing the ice bucket can prevent more ice from entering the chute while clearing it. It also allows you to check if the auger motor (located in the bucket or behind it) turns freely.
Step 3: Inspect the Dispenser Chute Opening

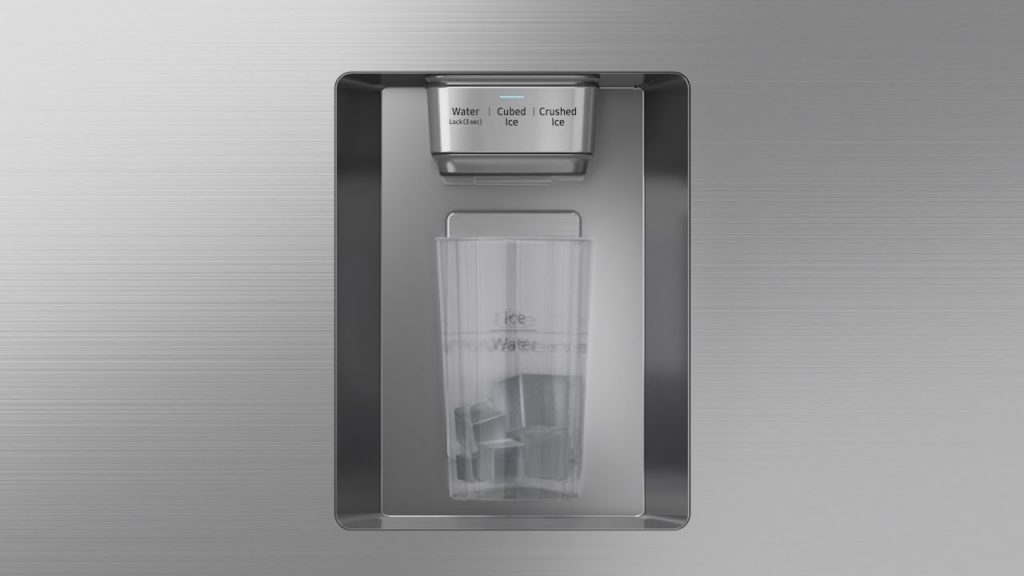

- Using your flashlight, look into the ice dispenser chute from the dispenser recess outside the door.
- Can you see a visible ice dam, frost buildup, or a lodged ice cube?
Step 4: Clear Loose Ice and Frost
- Manual Removal: If there are loose ice fragments or light frost, you can often dislodge them with your fingers (if reachable and safe) or gently use a long, thin wooden or plastic utensil to break them up or pull them down.
- Shop Vacuum: A shop vacuum with a crevice tool can be very effective at sucking out loose ice chips and frost from the chute.
Step 5: Address Stubborn Ice Blockages (Ice Dams)
- If there’s a solid block of ice (an ice dam) in the chute:
- Hair Dryer (Recommended): Set your hairdryer to its LOWEST or COOL heat setting. Direct the gentle airflow up into the chute. This will slowly melt the ice dam. Have towels ready below to catch dripping water. This can take some time. Be patient and avoid overheating the plastic.
- Warm Water Spray (Use with Extreme Caution & Power OFF): Only if the refrigerator is unplugged. Lightly mist warm (not hot) water up into the chute using a spray bottle. This can help melt the ice. Immediately wipe up any drips. Avoid soaking electrical components in the dispenser area.
- NEVER use sharp or metal objects to chip away at a solid ice dam. You can easily damage the chute liner, the dispenser flap, or other components.
Step 6: Check and Clean the Dispenser Flap
- The dispenser flap (or “ice door”) is located at the bottom of the chute, just inside the dispenser opening. It should open when you press the lever and close tightly when you release it.
- Inspect: Is it moving freely? Does it seal tightly when closed? Is there any ice or debris preventing it from closing properly?
- Clean: Wipe the flap and its sealing area with a damp cloth to remove any sticky residues or frost that might prevent a good seal.
Step 7: Dry Thoroughly
- After clearing any ice, thoroughly dry the inside of the chute and the dispenser recess area with a clean, dry cloth or paper towels.
Step 8: Test Dispensing
- If you unplugged the refrigerator, plug it back in.
- If you removed the ice bucket, reinstall it.
- Try dispensing ice. It should now flow freely.
Preventative Maintenance for the Ice Chute:
- Dispense Ice Regularly: Even if you don’t need much ice, dispense a small amount daily to keep the chute clear and prevent frost buildup.
- Ensure Flap Seals: Periodically check that the dispenser flap is closing tightly. Clean it if necessary.
- Wipe Dispenser Recess: Regularly wipe out any moisture or ice fragments from the dispenser recess on the door to prevent them from contributing to chute freeze-ups.
- Avoid Leaving Door Ajar: A freezer door left slightly ajar can increase humidity and frost in the freezer, which can migrate to the chute.
Conclusion:
A clogged ice dispenser chute is a frequent reason why a Samsung Side-by-Side refrigerator may fail to dispense ice, even if the ice maker is functioning. By carefully clearing blockages and performing simple preventative maintenance, you can often keep your ice flowing smoothly.
Suppose chute clearing doesn’t solve the problem, and you’ve confirmed the ice maker is making ice. In that case, the issue might lie with the auger motor in the ice bucket or the dispenser mechanism, which may require more advanced troubleshooting or professional repair.
