Introduction:
This is Method 9 in our Samsung refrigerator cooling troubleshooting series. If you’ve systematically checked individual cooling components, such as fans, sensors, and defrost elements, and ensured good airflow and clean coils. However, your refrigeratorย stillย isn’t cooling correctly, and theย main control board (PCB – Printed Circuit Board)ย may be a factor.
The main control board is the “brain” of your refrigerator. It receives input from all the sensors and then sends out commands to operate the compressor, fans, defrost heater, and other components. While a complete diagnosis and replacement of a control board is often a job for a professional, there are some preliminary checks and a simple reset procedure you can try.
Disclaimer:ย This guide covers fundamental visual inspection and a power reset.ย Replacing a main control board is a complex and advanced repair. It should typically be performed by a qualified appliance repair technician due to the risk of electrical shock and potential for further damage if done incorrectly.ย ALWAYS UNPLUG YOUR REFRIGERATOR FROM THE POWER OUTLET before attempting to inspect or access the control board visually. We are not liable for any damage or injury.
When to Suspect a Main Control Board Issue (After Other Checks):
- Multiple cooling-related components appear not to be receiving power or commands, despite testing okay individually (e.g., the defrost heater is good, the thermostat is good, but the defrost cycle never runs).
- Erratic behavior from various refrigerator functions, not just cooling.
- No apparent mechanical failures, but the cooling system doesn’t activate or run correctly.
- All other more common causes of cooling failure (fans, sensors, defrost system, sealed system leaks โ though leaks are professional-only) have been reasonably ruled out.
- Sometimes, specific error codes displayed might indicate a control board communication issue (consult your user manual).
What the Main Control Board Does:
- Receives temperature data from thermistors.
- Receives signals from door switches, defrost thermostat, etc.
- Sends power/signals to:
- The compressor and its start relay.
- Evaporator and condenser fan motors.
- Defrost heater (via the defrost thermostat or sensor).
- Damper control (if applicable).
- Ice maker and water valve solenoids.
- Manages the timing and logic of all cooling and defrost cycles.
Tools You’ll Need (for these preliminary steps):
- Screwdriver (usually Phillips):ย To access the control board cover.
- Flashlight.
Step-by-Step Preliminary Checks and Reset:
Step 1: SAFETY FIRST – UNPLUG THE REFRIGERATOR!
- Disconnect your refrigerator from the electrical outlet. This is essential before attempting to access the control board.
Step 2: Locate the Main Control Board
- The main control board is typically located on theย back of the refrigerator, behind a metal or plastic access panel.
- On some Samsung models, it might be in a compartment on the top of the refrigerator cabinet (less common for French Door/Side-by-Side cooling issues, but possible).
- Consult your refrigerator’s service manual or online diagrams for your specific model if you are unsure of its location.

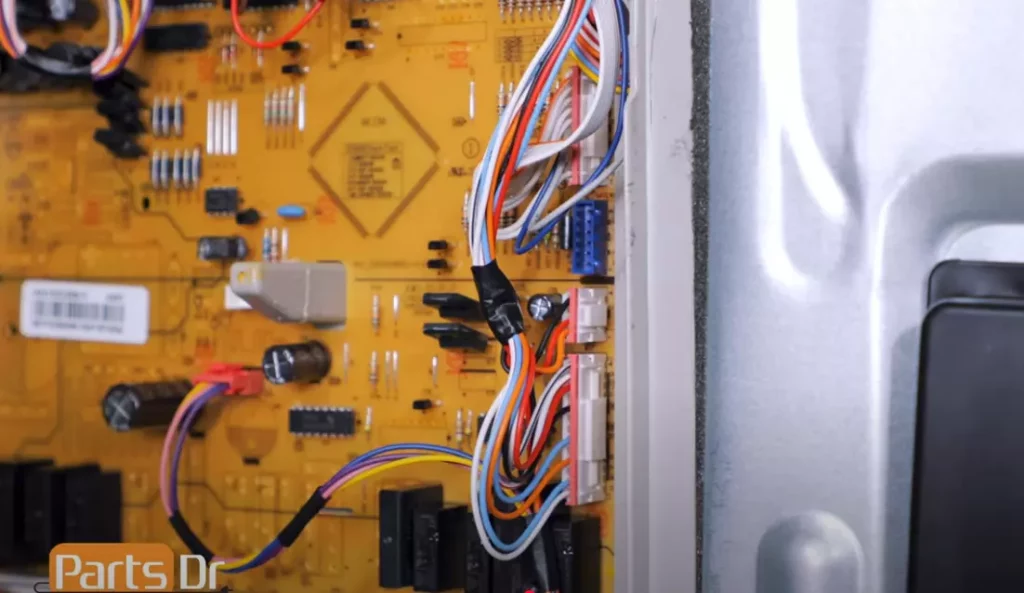

Step 3: Access and Visually Inspect the Control Board
- Remove the Access Panel:ย Unscrew and remove the panel covering the control board. The board is usually housed in a plastic casing.
- Visually Inspect (Look, Don’t Touch Yet):
- With a flashlight, carefully look at the control board.
- Are there anyย obvious signs of damage?ย Look for:
- Burn marks or scorchesย on the board or components.
- Bulging or leaking capacitorsย (small cylindrical components).
- Loose or disconnected wire harnesses.
- Signs of moisture damage or corrosion.
- If you see clear physical damage, such as burn marks, the board is almost certainly faulty and needs to be replaced by a professional.ย Do not proceed further if significant damage is visible.
Step 4: Perform a Hard Reset (Power Cycle)
This is the simplest “fix” attempt, and sometimes can resolve temporary glitches in the board’s software or state.
- Ensure the refrigerator is still UNPLUGGED.
- Wait:ย Leave the refrigerator unplugged for at leastย 5-10 minutes. This allows all capacitors on the control board to fully discharge and the memory to clear. Some recommend up to 30 minutes.
- Press and Hold the Power Button (If Applicable):ย If your refrigerator has a main power button on the control panel (often located on the front display), press and hold it for approximately 10-15 secondsย while the unit is still unplugged. This can help dissipate any residual charge. (This step does not apply to all models.)
- Plug Back In:ย Plug the refrigerator back into the power outlet.
Step 5: Monitor for Improvement
- Listen for the compressor and fans to start up (this might take a few minutes).
- Set your desired temperatures.
- Allow the refrigerator several hours (even up to 24 hours) to stabilize and see if cooling performance improves or if normal operation resumes.
- If the reset resolved a temporary glitch, the refrigerator might start cooling correctly.
Important Considerations:
- A Reset is Not a Fix for a Failed Board:ย If the control board has a failed component or a more serious internal fault, a reset will likely provide no improvement or only very temporary relief.
- Static Electricity:ย When near electronic boards, be mindful of static electricity. Ideally, ground yourself before touching any components (although for visual inspection and reset, direct touching isn’t usually required if you’re unplugging and replugging).
- Professional Replacement:ย Replacing a main control board requires careful handling of multiple wire harnesses and ensuring the correct replacement part is used. Due to the cost of the board and the potential for damaging a new board or other components if installed incorrectly, this is almost always best left to a qualified technician. They also have the tools to diagnose whether the board is truly the cause or if another component is sending incorrect signalsย toย the board.
Conclusion:
While a faulty main control board can cause a wide range of cooling problems in your Samsung refrigerator, DIY fixes are generally limited to a visual inspection for obvious damage and performing a hard power reset. If these preliminary steps don’t resolve the issue and other, more common components have been ruled out, a professional diagnosis of the control board is the recommended next step.
