Introduction:
This is Method 8 in our series dedicated to resolving ice maker freezing problems in Samsung French-door refrigerators. If you’re experiencing ice buildup directly in or around the ice maker’s mold or if ice cubes are misshapen and fused, issues with the water fill tube, such as dripping, incorrect positioning, or a partially frozen tip, could be the direct cause.
Unlike broader compartment freezing due to air leaks or main defrost issues, fill tube problems lead to excess water being introduced directly into the ice-making area at the wrong time or in the wrong place, which then freezes and can obstruct the mechanism or cause further ice accumulation.
Disclaimer: This guide is for informational purposes. You will be working with water lines and potentially disassembling parts of the ice maker. Always unplug your refrigerator from the power outlet and turn off the refrigerator’s water supply before attempting any disassembly or repair. Consult a qualified appliance repair technician if you are uncomfortable with these steps. We are not liable for any damage or injury.
When to Suspect Fill Tube Issues Causing Freezing:
- Ice forms inside the ice maker mold when it shouldn’t (e.g., between cycles).
- You see an ice trail leading from the fill tube into the mold or onto surrounding components.
- The ice cubes produced are oversized, misshapen, or frequently fused in large clumps.
- You hear a very slow, intermittent dripping sound from the ice maker area even when it’s not filling.
- The tip of the fill tube itself is encased in ice.
What are Common Fill Tube Problems?
- Dripping Fill Tube (Faulty Water Inlet Valve): The water inlet valve at the back of the refrigerator is supposed to shut off completely after filling the ice maker. If it’s faulty or has debris, it can allow a slow drip of water through the fill tube, which freezes in the mold or overflows.
- Misaligned Fill Tube: The fill tube should be precisely aimed to deliver water directly into the ice maker mold. If it’s slightly misaligned, water can spray or splash onto the sides of the mold or surrounding components, freezing there.
- Frozen Fill Tube Tip: If the very end of the fill tube becomes blocked with ice (often due to a slight drip that freezes), subsequent fill attempts can cause water to spray erratically or back up.
- Cracked Fill Tube: Though less common, a crack in the fill tube could leak water.
Step-by-Step Guide to Inspecting and Addressing Fill Tube Issues:
Step 1: SAFETY FIRST – UNPLUG THE REFRIGERATOR & TURN OFF WATER SUPPLY!
- Disconnect your refrigerator from the electrical outlet.
- Locate the water supply valve for your refrigerator (usually behind it or under a nearby sink) and turn it OFF.

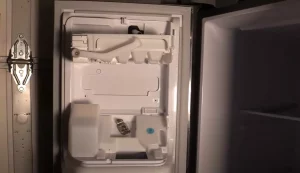

Step 2: Access the Ice Maker and Fill Tube
- Remove the ice bucket.

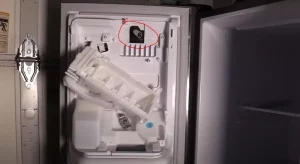

- You may need to remove the ice maker assembly to view and access the fill tube where it enters the ice maker mold. The fill tube is typically a plastic or rubber tube extending from the back or top of the ice maker compartment and directing water into the mold.
Step 3: Inspect the Fill Tube and Surrounding Area
- Check for Drips (Requires Water On – CAUTION):
- This step is best done BEFORE complete disassembly if possible, or by very carefully and briefly turning the water supply back on after re-assembly if a drip is suspectedโplace towels to catch any water.
- Observe the tip of the fill tube for several minutes. Is there any slow, persistent dripping of water even when the ice maker is not in a fill cycle? If so, the water inlet valve is likely faulty and needs replacement (this is a more advanced repair, often best left to a professional, or covered in a separate guide focused on valve replacement).
- Check for Misalignment:
- Visually inspect where the fill tube aims. Does it point directly into the center of the ice maker mold cups? Or is it angled such that water might spray onto the edges or nearby components?
- Some fill tubes have a clamp or bracket that can be gently loosened to allow slight repositioning. After you adjust it, ensure it’s secure.
- Check for a Frozen Tip:
- Is the very end of the fill tube blocked with ice? If so, use your hairdryer on its LOWEST/COOL heat setting to gently thaw it. Do not use high heat.
- Check for Cracks:
- Inspect the visible length of the fill tube for any cracks or splits. If found, the tube will likely need to be replaced.
Step 4: Clean the Fill Tube Tip (If Accessible and Necessary)
- If the fill tube tip was frozen or appears to have mineral buildup, once thawed and dry, you can gently try to clean the inside opening with a soft pipe cleaner or a tiny, soft brush. Be careful not to damage the tube.
Step 5: Address the Findings

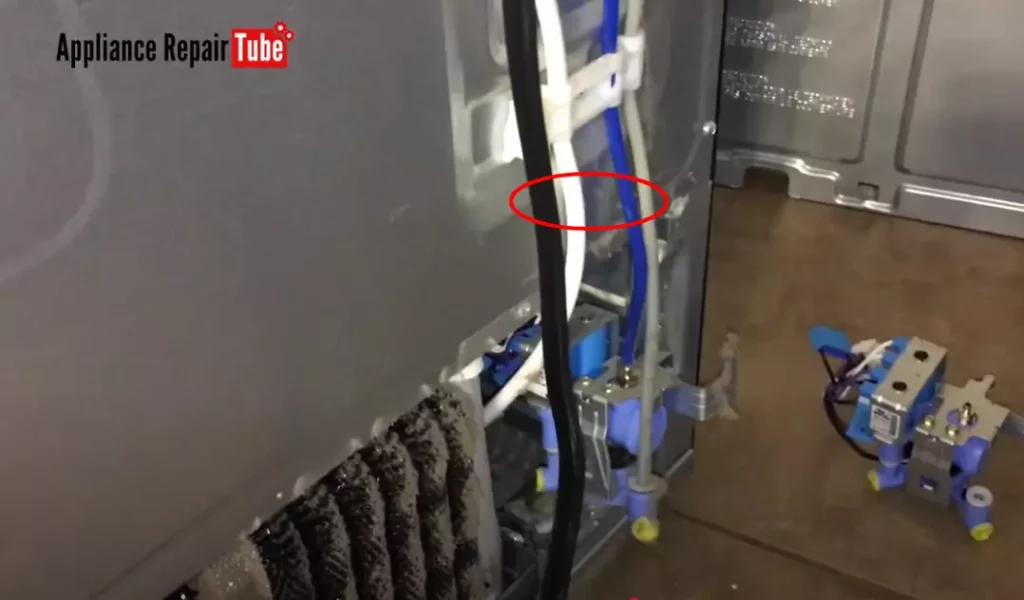

- Dripping Valve:ย If a persistent drip from the fill tube (when not in a fill cycle) is confirmed, the water inlet valve likely needs to be replaced. This is usually a separate component at the back of the refrigerator. Click here to buy a new Samsung fridge Dripping Valve.
- Misalignment: If the tube was misaligned, carefully try to reposition it. Sometimes the mounting bracket allows for minor adjustments. If it’s significantly out of place, check if any mounting screws for the ice maker or tube are loose.
- Frozen Tip: After thawing, observe if it refreezes quickly. If it does, it’s often a symptom of a slight drip from the water inlet valve (see above).
- Cracked Tube:ย A cracked fill tube needs to be replaced. Click here to buy a new Samsung fridge fill tube.
Step 6: Reassemble
- If you removed the ice maker assembly, carefully reinstall it, ensuring the fill tube properly aligns with the fill cup on the ice maker.
- Reconnect all wiring and re-secure any covers.
- Install the ice bucket.
Step 7: Restore Power and Water Supply & Monitor
- Turn the water supply valve back ON. Check for any immediate leaks around the connections.
- Plug the refrigerator back into the power outlet.
- Turn the ice maker function ON.
- Observe the first few fill cycles if possible. Does the water flow cleanly into the mold?
- Monitor for ice buildup in and around the mold over the next few days.
Important Considerations:
- Water Inlet Valve is Often the Root Cause of Drips: A dripping fill tube is almost always a symptom of a faulty water inlet valve that isn’t closing completely.
- Gentle Adjustments:ย Be very gentle when repositioning the fill tube, as it can be brittle.
- Water Damage: If water has been spraying or dripping for a while, check for signs of water damage or corrosion on nearby components.
Conclusion:
Problems with the water fill tube โ whether dripping due to a faulty valve, misalignment, spraying, or a frozen tip – can lead to ice forming in inappropriate places within or around your Samsung ice maker. Careful inspection and addressing these specific issues can often resolve localized freezing and misshapen ice problems.
