Introduction:
Welcome to Method 5 in our ongoing series on combating ice maker freezing in Samsung French-door refrigerators. If you’ve ensured good sealing (Method 1) and addressed potential defrost sensor issues (Method 4 with Y-Clips) but are still experiencing widespread frost or ice accumulation that could affect your ice maker, a frozen defrost drain tube might be the culprit.
When the refrigerator goes through its defrost cycle, meltwater needs to drain away. Suppose this drain tube freezes or becomes clogged with re-frozen water. In that case, the water can back up, overflow, and freeze in various parts of the fresh food compartment, including areas that impact the ice maker’s environment or the ice maker compartment itself. To prevent this, Samsung sometimes provides solutions like drain tube heater clips or extensions for specific models.
Disclaimer: This guide is for informational purposes. This repair involves accessing internal components near the evaporator and potentially electrical connections. Always unplug your refrigerator from the power outlet before attempting any disassembly or repair. If you are uncomfortable with these steps or your refrigerator’s design differs significantly, please consult a qualified appliance repair technician. Follow any specific instructions if you obtain a drain heater kit. We are not liable for any damage or injury.
When to Suspect a Frozen Defrost Drain Tube:
- Excessive frost or a sheet of ice forms on the bottom of the fresh food compartment, particularly under the crisper drawers or near the back wall.
- Water is leaking inside the refrigerator or even out onto the floor.
- The ice maker freezing seems to be part of a larger, more generalized frosting issue in the refrigerator compartment, rather than just isolated to the ice maker housing.
- You’ve cleared the drain tube opening before, but it re-freezes.
What is a Drain Tube Heater Solution?
These solutions are designed to keep the defrost drain tube or its opening warm enough to prevent meltwater from re-freezing: see the video after 8 minutes.
- Drain Clip Heater / Probe Heater:
- Description: A small, often metallic probe or clip that conducts heat from the defrost heater’s element towards or into the drain hole area. It’s a passive way to transfer some defrost heat.
- Drain Tube Heater Extension/Element:
- Description: Some service kits might include a small, dedicated heating element that wraps around the drain tube or is inserted near its opening, actively warming it during the defrost cycle.
- Modified Drain Tubes/Straps:
- Description: In some cases, a revised drain tube design or a conductive strap might be part of a kit to improve drainage or heat transfer.
Obtaining a Drain Tube Heater Solution:
- Identify Applicability: This is key. Not all models will have this issue or a specific kit.
- Samsung Support: Contact them with your model and serial number, describe the symptoms (especially ice under the crispers and potential drain freezing), and ask about service bulletins or kits for the defrost drain.
- Get from Amazon: Samsung fridge Probe Heater.
- Professional Technician: An authorized technician is your best bet for diagnosing the issue and obtaining or installing the correct solution.
General Installation Steps (Always Prioritize Kit-Specific Instructions!):
Step 1: SAFETY FIRST – UNPLUG THE REFRIGERATOR!
- Disconnect your refrigerator from the electrical outlet.
Step 2: Empty and Access the Evaporator & Drain Area
- Open the fresh food compartment doors.
- Remove all shelves, drawers (especially crispers), and food items to fully access the back interior panel (evaporator cover).

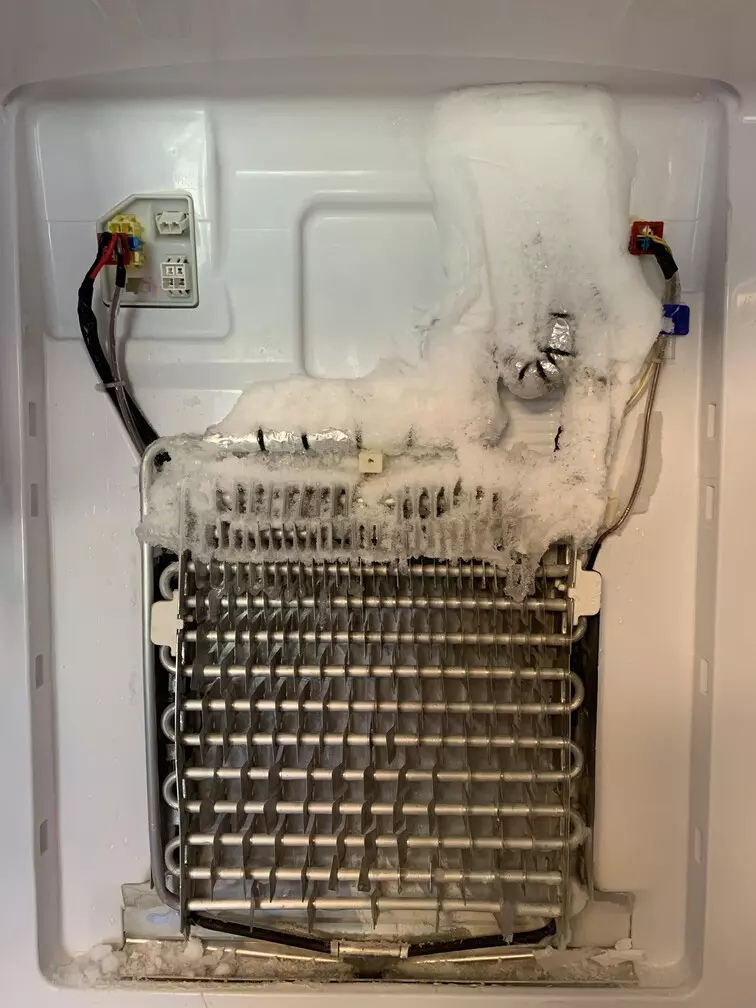

Step 3: Remove the Evaporator Cover
- Several Phillips-head screws typically hold this in place. Remove them.
- Gently release any clips and pull the cover away. Be mindful of any fan wiring and disconnect harnesses if needed.
Step 4: Locate the Defrost Drain Hole
- The defrost drain hole is located at the very bottom of the trough or pan, directly beneath the evaporator coil. This is where the meltwater is supposed to exit.
- Clear any existing ice: If the drain hole or trough is clogged, clear it first. Use a hairdryer on a LOW/COOL setting, or carefully pour small amounts of warm (not hot) water into the trough to melt the ice. Use a turkey baster or syringe to remove the meltwater and ice slush. You can also use a stiff (but not sharp) wire or a small flexible tube to gently probe and clear the drain opening.
Step 5: Install the Drain Tube Heater Solution (Follow Kit Instructions)
- Drain Clip Heater Example: These often clip onto the defrost heater element (the U-shaped tube running along the evaporator) with a “tail” or probe extending into or near the drain hole. The idea is that heat from the defrost heater will conduct down the clip/probe and keep the drain opening from freezing.
- Dedicated Heater Element Example: If your kit has an actual electrical heating element for the drain, it will likely need to be wired into the defrost circuit (this is where professional help is often strongly advised if you’re uncomfortable with electrical wiring). It would then be positioned around or near the drain tube.
- Ensure secure placement as per the kit’s instructions.
Step 6: Verify Drain Path
- Once the heater solution is installed and the drain is clear, you can test it by slowly pouring a small amount of water into the defrost trough. It should drain away freely down the tube to the evaporator pan located at the back or bottom of the refrigerator (outside the refrigerated compartment).
Step 7: Reassemble
- Carefully reattach any wiring harnesses to the evaporator cover.
- Reinstall the evaporator cover, securing all screws and clips.
- Reinstall all shelves, drawers, and food items.
Step 8: Power Up and Monitor
- Plug the refrigerator back into the power outlet.
- Observe over the next few defrost cycles (which happen automatically every 8-12 hours) and over the following days/weeks. Look for signs of water accumulation under the crispers or recurring ice buildup in that area.
Important Considerations:
- Correct Diagnosis: A drain heater is only effective if a frozen defrost drain is the problem or a significant contributing factor.
- Kit Availability: These solutions are model-specific and may not be available for all units.
- Electrical Safety (if applicable): Extreme caution is required when wiring a new heating element. If unsure, hire a professional.
Conclusion:
Addressing a frozen defrost drain tube, often with an official Samsung-supplied heater clip or element, can be vital in resolving widespread frosting issues that indirectly lead to your ice maker freezing up. This fix targets the proper removal of meltwater during the defrost cycle.
